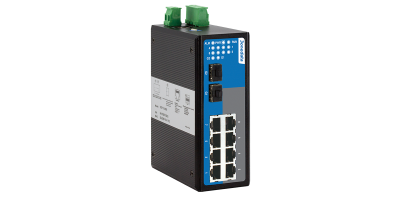

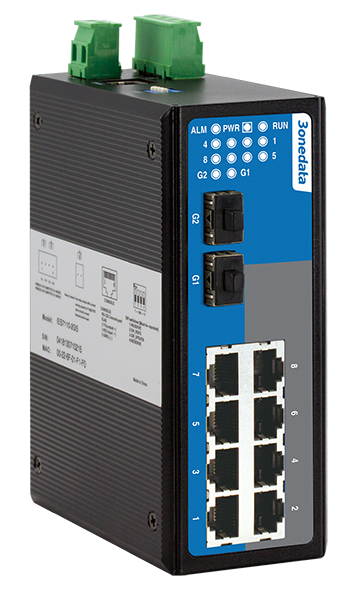

IES7110 Series: 10 Port Gigabit Layer 2 Managed Industrial Ethernet Switch

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

Management

SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics

Security

Classification of User Permissions, Port Alarm and Power Supply Alarm

Switch Function

802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control

Unicast / Multicast

Static Multicast , IGMP-Snooping

Redundancy Protocol

SW-Ring, STP/RSTP

Interface

100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-adaption, MDI/MDI-X Autotunning

Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode Self-adaption, MDI/MDI-X Autotunning

100M fiber port: 100Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output

LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 1Mbit

Backplane bandwidth: 7.6G

Switch time delay: <10μs

Power Requirement

12~48VDC, 4-pin 7.62mm pitch terminal blocks

dual power supply redundancy, non-polarity, reverse connection protection

Power Consumption

Environmental Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting or wall mounting

Dimension (W x H x D): 53mm×138mm×110mm

Weight: ≤790g

Industrial Standard

IEC 61000-4-2 (ESD), Level 4

Air discharge: ±15kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT)，Level 4

Power supply: ±4kV

Ethernet port: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 4 (excludes IES7110-3GS)

Power supply: common mode±4kV, differential mode±2kV

Ethernet port: ±2kV

Relay: common mode±4kV, differential mode±2kV

IEC 61000-4-5 (Surge), Level 3 (IES7110-3GS)

Power supply: common mode±2kV, differential mode±1kV

Ethernet port: ±2kV

Relay: common mode±2kV, differential mode±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS, UL61010
