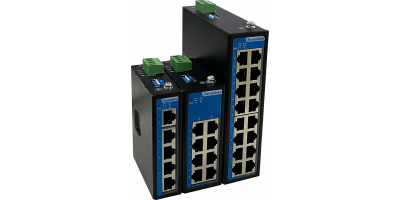

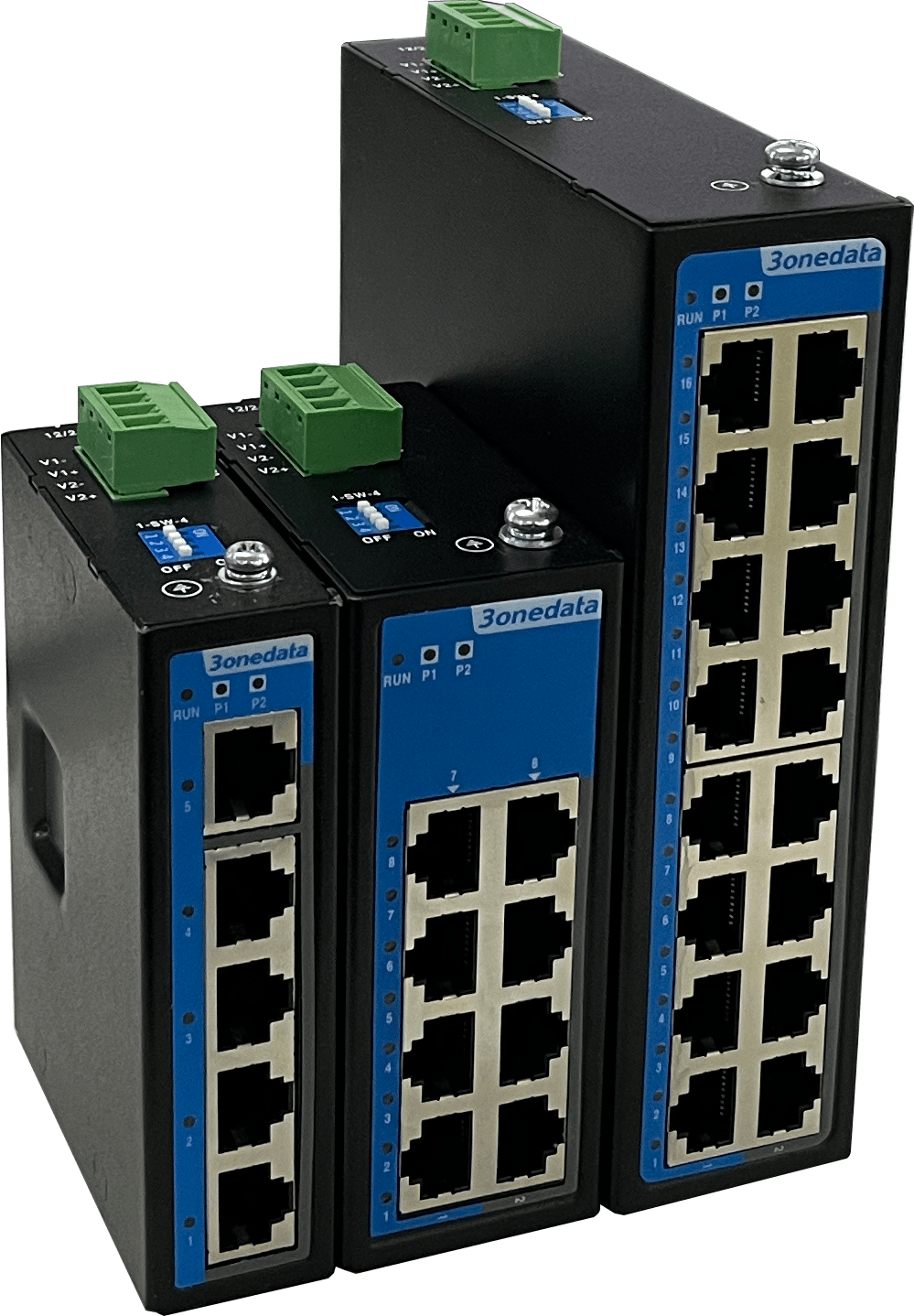

IES2100SL-5T-2LV | Switch công nghiệp 5 cổng 100M 3Onedata

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3x for Flow Control

IEEE 802.1Q for VLAN

Interface

100M copper port: 10/100Base-T(X) self-adaptive RJ45, full/half duplex mode self-adaption, MDI/MDI-X autotunning

DIP switch: 1-loop detection, 2-storm suppression, 3-VLAN, 4-flow control

Indicator

Power indicator, running indicator, interface indicator

Switch Property

Transmission mode: store and forward

MAC address: 2K

Backplane bandwidth: 1G

Switch time delay: 10μs

Power Supply

12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin 5.08mm pitch terminal blocks, support anti-reverse connection

Power Consumption

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%～95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (width× height× depth): 28mm×103mm×78mm

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

l Contact discharge: ±6kV

l Air discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

l Power supply: ±2kV

l Copper port: ±2kV

IEC 61000-4-5 (Surge), Level 3

l Power supply: differential mode±1kV, common mode±2kV

l Copper port: ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

5 years
