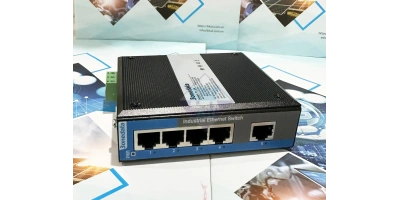

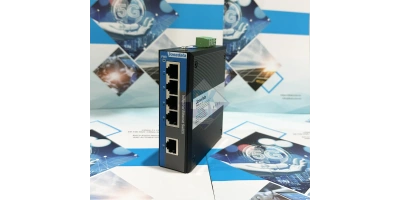

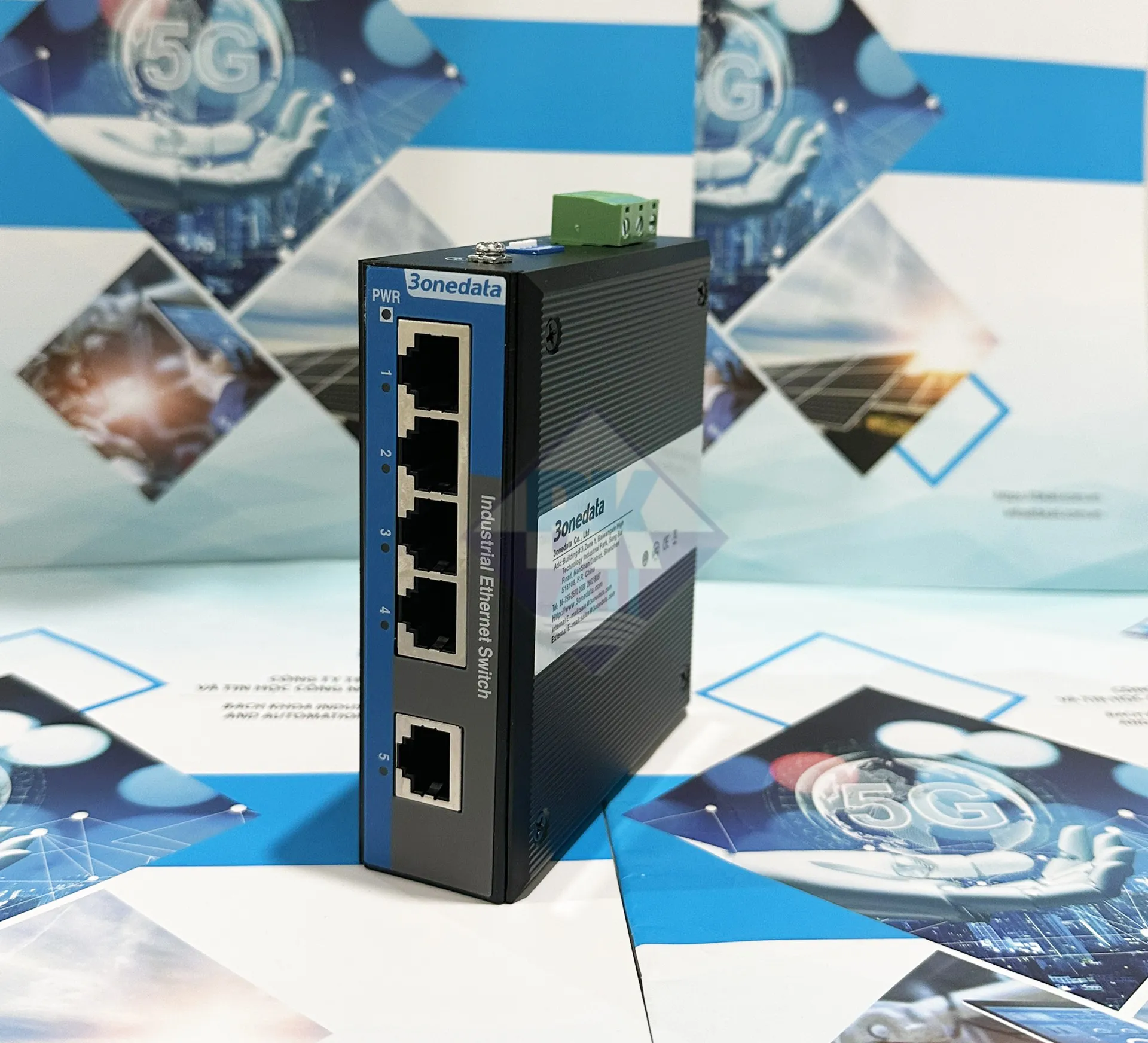

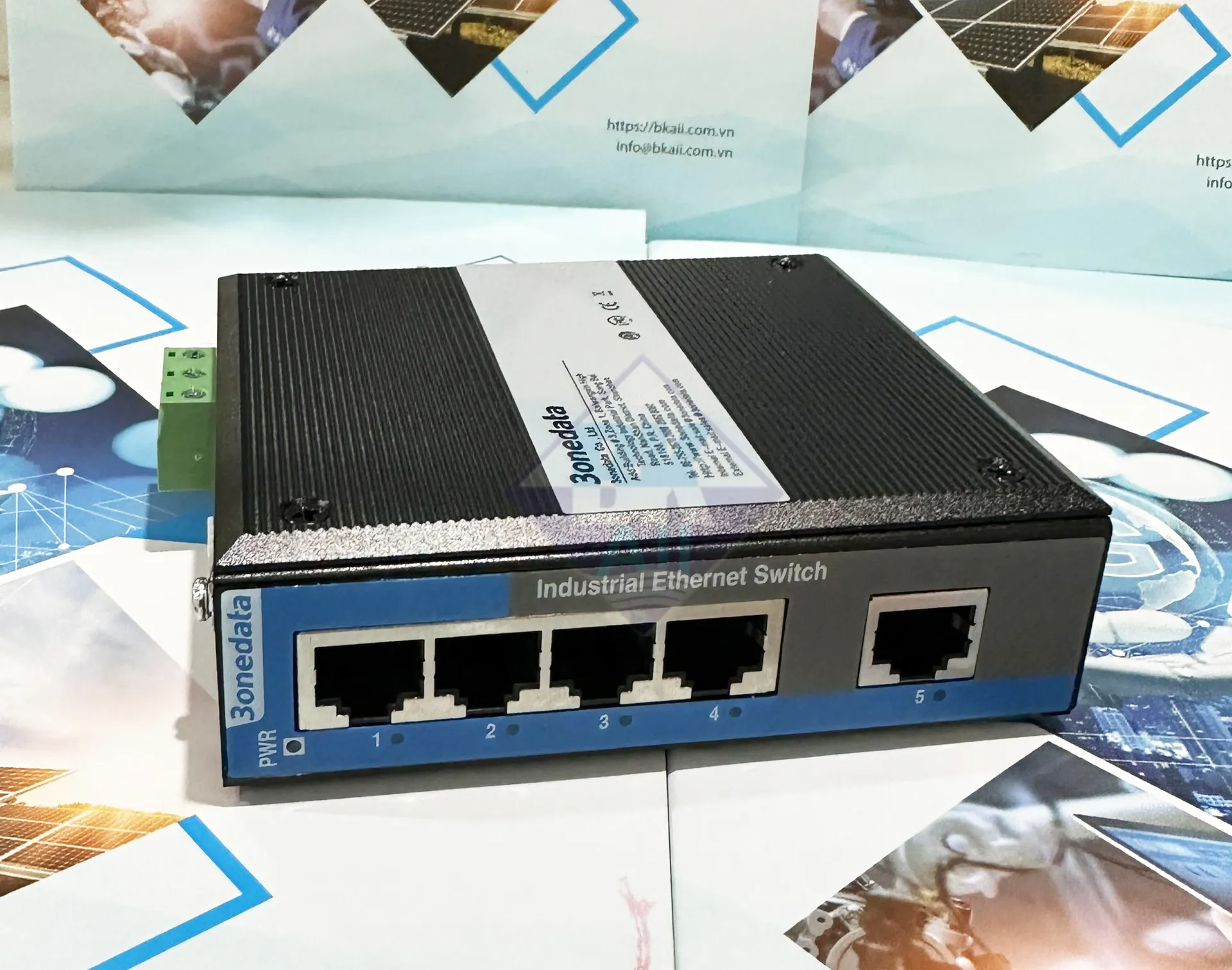

IES2105-5T-P48: Switch công nghiệp hỗ trợ 5 cổng Ethernet tốc độ 10/100Base-T(X), RJ45

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100BaseFX

IEEE 802.3x for Flow Control

IEEE 802.1Q for VLAN

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

The maximum power of PoE port: 30W

The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6

100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning

MAC address: 2K

Backplane bandwidth: 1G

Transmission mode: store and forward

Switch time delay: 10μs

Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 220VAC

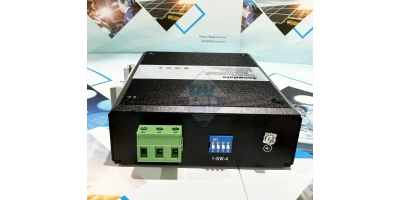

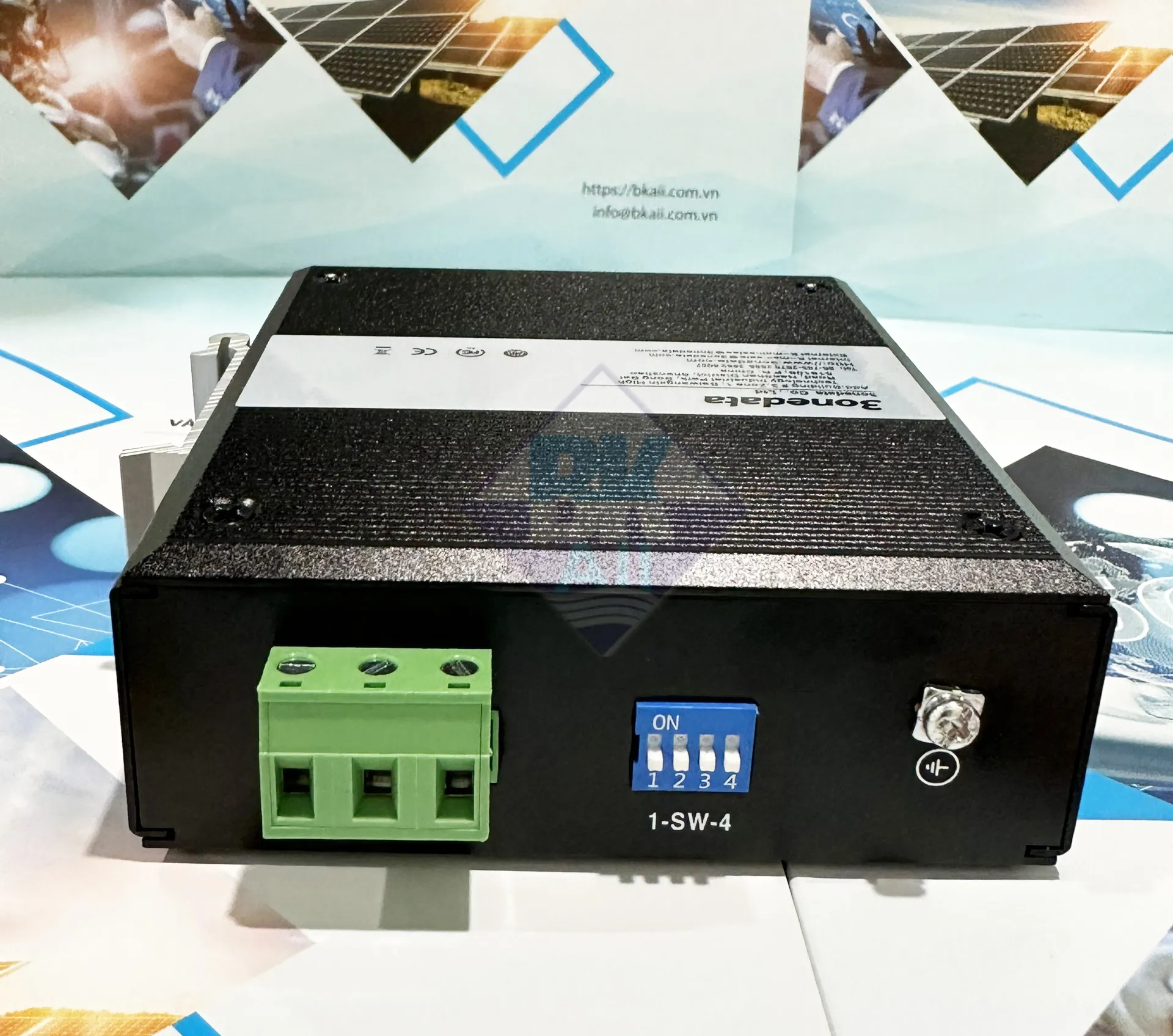

3-pin 7.62mm pitch terminal blocks

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%～95% (no condensation)

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight

l IES2105-5T-P48: 356g

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

l Air discharge: ±15kV

l Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 4

l Power supply: ±4kV

l Signal: ±2kV

IEC 61000-4-5 (Surge), Level 4

l Power supply: differential mode±2kV, common mode±4kV

l Signal: differential mode±2kV, common mode±4kV

Shock: IEC 60068- 2- 27

Free fall: IEC 60068- 2- 32

Vibration: IEC 60068- 2- 6
