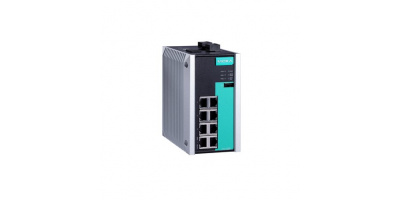

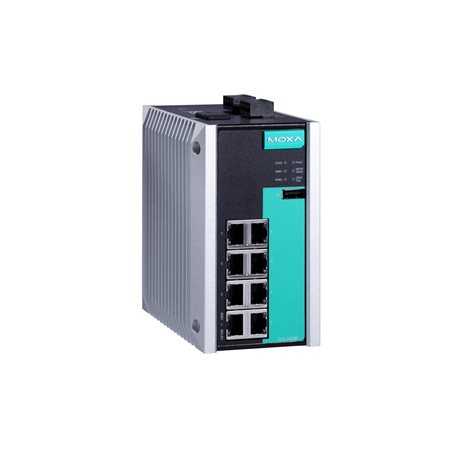

EDS-G508E Moxa | Switch Công Nghiệp Managed Gigabit 8 Cổng Ethernet

Input/Output Interface

Alarm Contact Channels

1
Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

Reset button

Digital Input Channels

1

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter

802.1Q VLAN
BPDU Filter
BPDU Guard
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN

Industrial Protocols

EtherNet/IP
Modbus TCP
PROFINET IO Device

Management

LLDP
Back Pressure Flow Control
BOOTP
Port Mirror
DHCP Option 66/67/82
DHCP Server/Client
Fiber check
Flow control
IPv4/IPv6
RARP
RMON
SCP
SMTP
SNMP Inform
SNMPv1/v2c/v3
Syslog
Telnet
TFTP

MIB

Ethernet-like MIB
MIB-II
Bridge MIB
P-BRIDGE MIB
Q-BRIDGE MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB

Redundancy Protocols

Link Aggregation
MRP
MSTP
RSTP
STP
Turbo Chain
Turbo Ring v1/v2

Security

Broadcast storm protection
HTTPS/SSL
TACACS+
SNMPv3
MAB authentication
Sticky MAC
NTP authentication
MAC ACL
Port Lock
RADIUS
SSH
SMTP with TLS

Time Management

NTP Server/Client
SNTP

Switch Properties

IGMP Groups

2048

Jumbo Frame Size

9.6 KB

MAC Table Size

8 K

Max. No. of VLANs

256

Packet Buffer Size

4 Mbits

Priority Queues

4

VLAN ID Range

VID 1 to 4094

USB Interface

Storage Port

USB Type A

LED Interface

LED Indicators

PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console Port

USB-serial console (Type B connector)

DIP Switch Configuration

DIP Switches

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 4-contact terminal block(s)

Input Current

0.28 A @ 24 VDC

Input Voltage

12/24/48/-48 VDC
Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

Weight

1440 g (3.18 lb)

Installation

DIN-rail mounting
Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 508

EMC

EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

ATEX
Class I Division 2

Maritime

DNV-GL
LR
ABS
NK

Power Substation

IEC 61850-3
IEEE 1613

Railway

EN 50121-4

Traffic Control

NEMA TS2

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

808,970 hrs

Standards

Telcordia (Bellcore), GB
