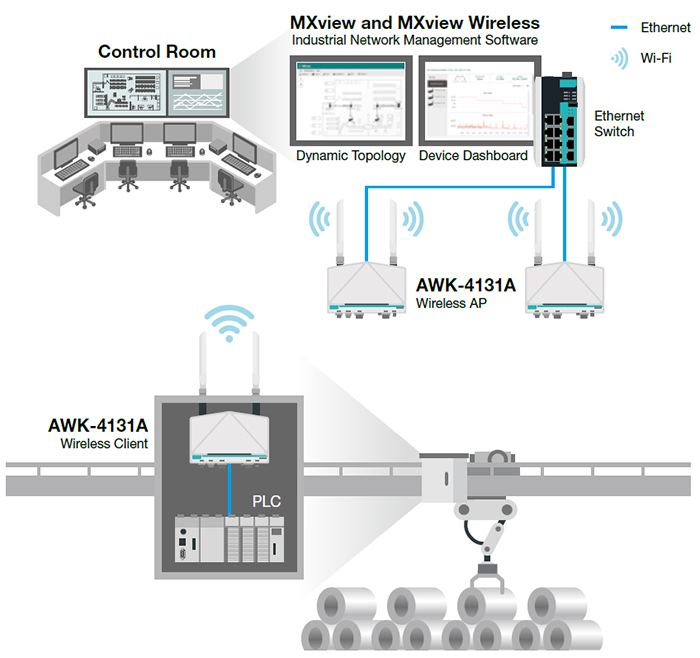

AWK-4131A: Outdoor industrial IEEE 802.11a/b/g/n wireless AP/bridge/client

802.11a/b/g/n

802.11i Wireless Security

Modulation Type

DSSS
MIMO-OFDM
OFDM

2.412 to 2.462 GHz (11 channels)

5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)

5.500 to 5.700 GHz (11 5.745 to 5.825 GHz (5 channels)

2.412 to 2.472 GHz (13 channels)

5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)  5.500 to 5.700 GHz (11 channels)

• Frequency Band for JP (20 MHz operating channels)

2.412 to 2.484 GHz (14 channels)

5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)

5.500 to 5.700 GHz (11 channels

WEP encryption (64-bit and 128-bit)

WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal

802.11b: 1 to 11 Mbps

802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps

23±1.5 dBm @ 6 to 24 Mbps

21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps

26±1.5 dBm @ 1 Mbps

26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps

23±1.5 dBm @ 6 to 24 Mbps

22±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
19±1.5 dBm @ 54 Mbps

23±1.5 dBm @ MCS0/8 20 MHz

17±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz

23±1.5 dBm @ MCS0/8 20 MHz

18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
18±1.5 dBm @ MCS7/15 40 MHz

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

Connections

1

PoE

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af for PoE
IEEE 802.3u for 100BaseT(X)

DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Wireless Search Utility, VLAN, MXview, MXconfig

Security

Time Management

HTTPS/SSL, RADIUS, SSH

SNTP Client

Filter

ICMP, MAC address, IP protocol, Port-based

RS-232, 8-pin RJ45

• Input Current

Input Voltage

Power Consumption

12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet

7.68 W (max.)

M12 A-coded 5-pin male connector

Housing

Dimensions

IP Rating

Weight

Installation

Metal

224 x 147.7 x 66.5 mm (8.82 x 5.82 x 2.62 in)

IP68

1,400 g (3.09 lb)

Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional)

-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)
