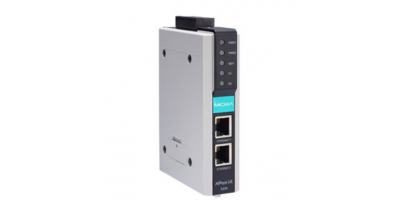

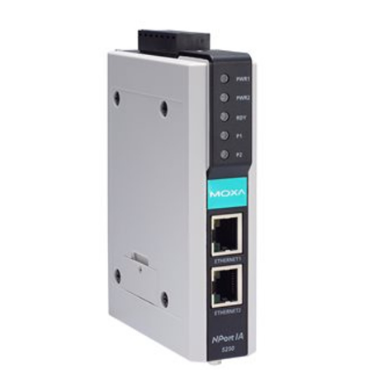

NPort IA-5250I: 2-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), 0 to 55°C

NPort IA-5250I 2-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), 0 to 55°C operating temperature của hãng Moxa được BKAII đang phân phối rộng rãi tại thị trường Việt Nam. NPort IA-5250I được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

• Hướng dẫn cài đặt máy chủ thiết bị công nghiệp dòng NPort IA5150/5250 hãng MOXA

Tính năng của sản phẩm:

• Socket modes: TCP server, TCP client, UDP
• ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
• Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
• Redundant DC power inputs
• Warnings and alerts by relay output and email
• 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
• IP30-rated housing

Thông số kỹ thuật của sản phẩm:

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector) : 2 (1 IP, Ethernet cascade, NPort IA-5150/5150I/5250/5250I)
• Magnetic Isolation Protection : 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options : Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
• Management : DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
• Windows Real COM Drivers : Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Linux Real TTY Drivers : Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
• Fixed TTY Drivers : SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
• Android API : Android 3.1.x and later
• Time Management : SN : RFC1213, RFC1317

Security Functions

• Authentication : Local database (password only)

Serial Interface

• Connector : 2 x DB9 male
• Serial Standards : RS-232, RS-422, RS-485
• Baudrate : Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
• Data Bits : 5, 6, 7, 8
• Parity : None, Even, Odd, Space, Mark
• Stop Bits : 1, 1.5, 2
• Flow Control : RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
• Terminator for RS-485 : 120 ohms
• Pull High/Low Resistor for RS-485 : 1 kilo-ohm, 150 kilo-ohms
• Isolation : 2 kV
• RS-485 Data Direction Control : ADDC (automatic data direction control)

Serial Signals

• RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422 : Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w : Data+, Data-, GND

Power Parameters

• Input Voltage : 12 to 48 VDC
• Input Current : 510 mA @ 12 VDC
• Power Connector : Terminal block

Relays

• Contact Current Rating : Resistive load: 1 A @ 30 VDC

Physical Characteristics

• Housing : Plastic
• IP Rating : IP30
• Dimensions : 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
• Weight : 380 g (0.84 lb)
• Installation : DIN-rail mounting

Environmental Limits

• Operating Temperature : 0 to 60°C (32 to 140°F)
• Storage Temperature (package included) : -40 to 85°C (-40 to 167°F)
• Ambient Relative Humidity : 5 to 95% (non-condensing)

Standards and Certifications

• EMC : EN 55032/35
• EMI : CISPR 32, FCC Part 15B Class A
• EMS : IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
• Safety : IEC 60950-1, EN 60950-1, EN 62368-1, UL 508
• Maritime : DNV
• Hazardous Locations : ATEX, Class I Division 2, IECEx
• Freefall : IEC 60068-2-32
• Shock : IEC 60068-2-27
• Vibration : IEC 60068-2-6, IEC 60068-2-64

Declaration

• Green Product : RoHS, CRoHS, WEEE

MTBF

• Time : 1,236,384 hrs
• Standards : Telcordia (Bellcore) Standard TR/SR
